KCI, TW2025

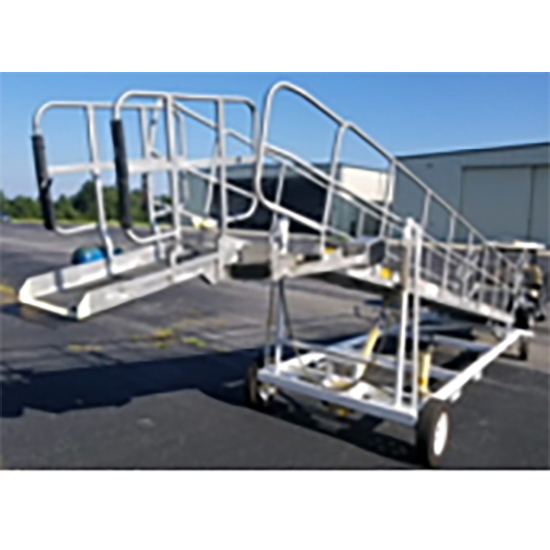

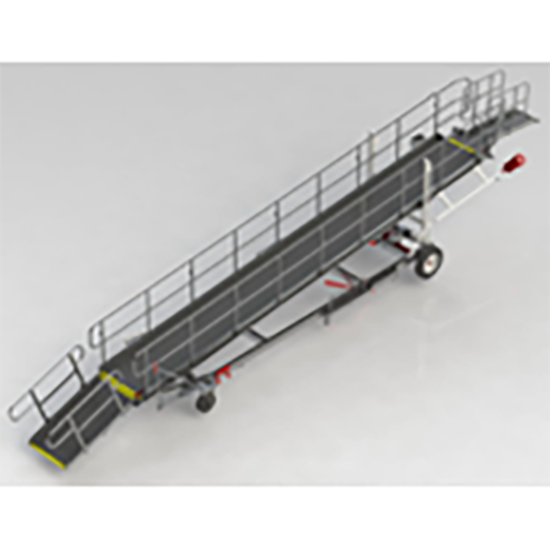

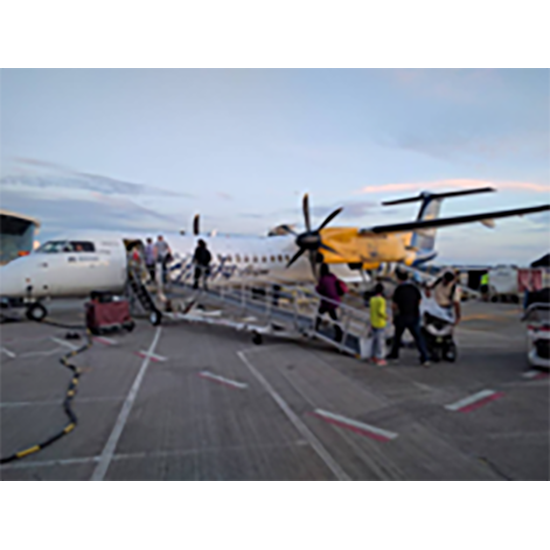

The Turboway passenger ramp is a universal ramp designed to serve commuter size aircraft. This ramp allows easier access for all passengers & disabled & non. With adjustable slope & pivoting bridge, it lays over existing aircraft stairs & provides a faster, safer & more comfortable alternative to boarding & deplaning. The Turboway is comfortably sloped, non-motorized & easy to operate.

Note: Ramp can be used on all commuters up to CRJ900/1000.

• Dimensions: L 28’; W 72”; H 96” (stowed)
• Weight: 1,450 lbs.
• Adjustable Gates: lower 43” & higher 77”
• Wheels: All pneumatic, industrial foam filled
• Brakes: Dead Man style
• Surface: 36” Wide Safeguard Anti-Slip
• Upper Platform: will accommodate full size wheelchair
• Upper Bridge Connecting to Aircraft W 18.5”
• Main Ramp: 36.5″ wide walking surface
• Lower Bridge: 32″ wide walking surface
• One man operation
• Tow Bar

Option: Available

• Overhead Canopy & Canopy frame
